Introduction

WireGuard has quickly become one of the most popular VPN solutions thanks to its simplicity, speed, and modern cryptography. Running it inside Docker makes deployment and maintenance even easier.

In this guide, we’ll set up a WireGuard VPN server using Docker Compose.

Prerequisites

Before you begin, ensure you have:

  • A Linux server or VPS
  • Docker installed
  • Docker Compose installed
  • A public IP address or Dynamic DNS hostname

You can verify Docker is installed:

docker --version
docker compose version

Homelab Environment

Here’s my setup:

  • Proxmox VE: Virtualization host for all lab VMs and containers
  • Linux VM: Debian/Ubuntu virtual machine running Docker
  • Docker with Docker compose: For ease of starting up container and shutting down with docker compose
  • Network: Static IP assigned to the VM, integrated with home router for DNS resolution

Step 1: Create a docker-compose file

It is a good idea to place it in a separate directory. So lets create a following directory for our wireguard setup

mkdir ~/wireguard
cd ~/wireguard

Step 2: Create a Docker Compose File for Wireguard

Now on the wireguard directory create a compose file with the text editor of your choice. Here I have used nano

nano compose.yaml

Here is what the compose file should look like:

services:
  wireguard:
    image: lscr.io/linuxserver/wireguard:latest
    container_name: wireguard
    cap_add:
      - NET_ADMIN
      - SYS_MODULE #optional
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Etc/UTC
      - SERVERURL=auto #optional
      - SERVERPORT=51820 #optional
      - PEERS=peer1,peer2 #optional
      - PEERDNS=1.1.1.2,1.0.0.2 #optional
      - INTERNAL_SUBNET=10.13.13.0 #optional
      - ALLOWEDIPS=0.0.0.0/0 #optional
    volumes:
      - /home/ajaya/wireguard:/config
      - /lib/modules:/lib/modules #optional
    ports:
      - 51820:51820/udp
    sysctls:
      - net.ipv4.conf.all.src_valid_mark=1
    restart: unless-stopped

Step 3: Start the server

Run:

docker-compose up -d

Verify if it is running:

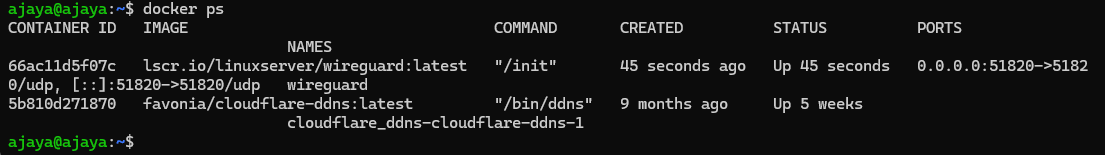

docker ps

You should see the wireguard container is listed Image Description

Step 4: Retrieve Client Configurations

The LinuxServer image automatically generates client configurations.

List generated peer files:

ls config/peer1/

Display the client configuration:

cat config/peer/peer1/peer1.config

You should see something like this:

[Interface]
PrivateKey = CLIENT_PRIVATE_KEY
Address = 10.13.13.2/32
DNS = 1.1.1.1

[Peer]
PublicKey = SERVER_PUBLIC_KEY
Endpoint = your-domain.example.com:51820
AllowedIPs = 0.0.0.0/0
PersistentKeepalive = 25

Generate a QR Code

For mobile devices, importing via QR code is much easier.

Generate a QR code:

docker exec -it wireguard /app/show-peer 1

Open the WireGuard app and scan the displayed QR code.

Configure Port Forwarding

On your router, forward:

UDP 51820

to the internal IP address of your Docker host.

Without port forwarding, clients outside your network will not be able to connect

Testing the VPN

Connect using your WireGuard client and verify connectivity:

Check your public IP:

curl ifconfig.me

The returned IP should match your home network or VPS.

Final Thoughts

Using Docker dramatically simplifies the deployment of WireGuard. With only a single Compose file, you can quickly build a secure VPN solution for remote access, homelab management, or protecting your traffic while travelling.

WireGuard’s lightweight design and excellent performance make it one of the best self-hosted VPN solutions available today. Combined with Docker, maintaining and updating your VPN server becomes almost effortless.

Happy self-hosting!
